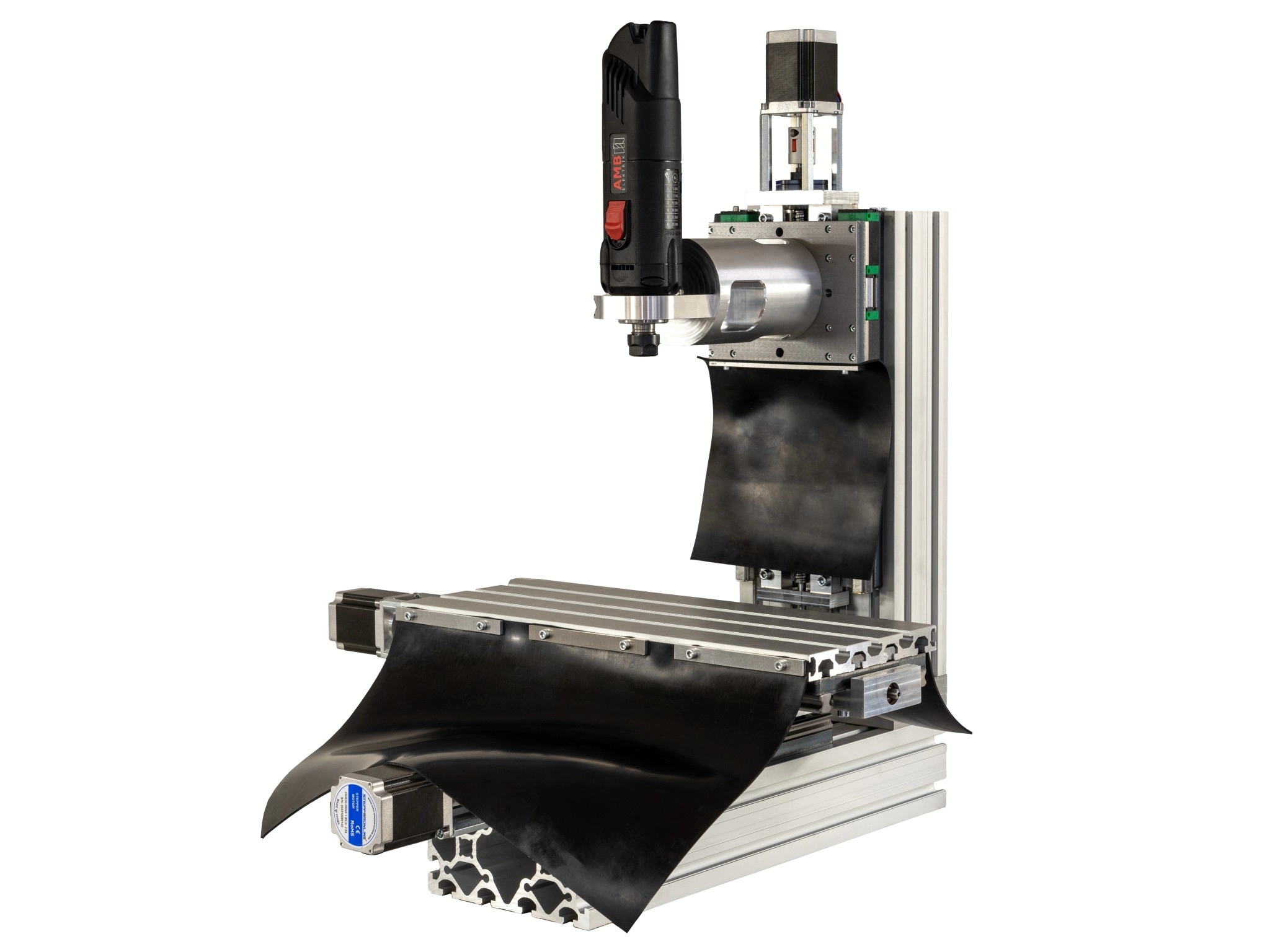

VM-1

Robust CNC milling machine ideal for those who need ≤0.01mm precision on their projects

Options

- PHOTOS & VIDEOS -

- TECHNICAL SPECS -

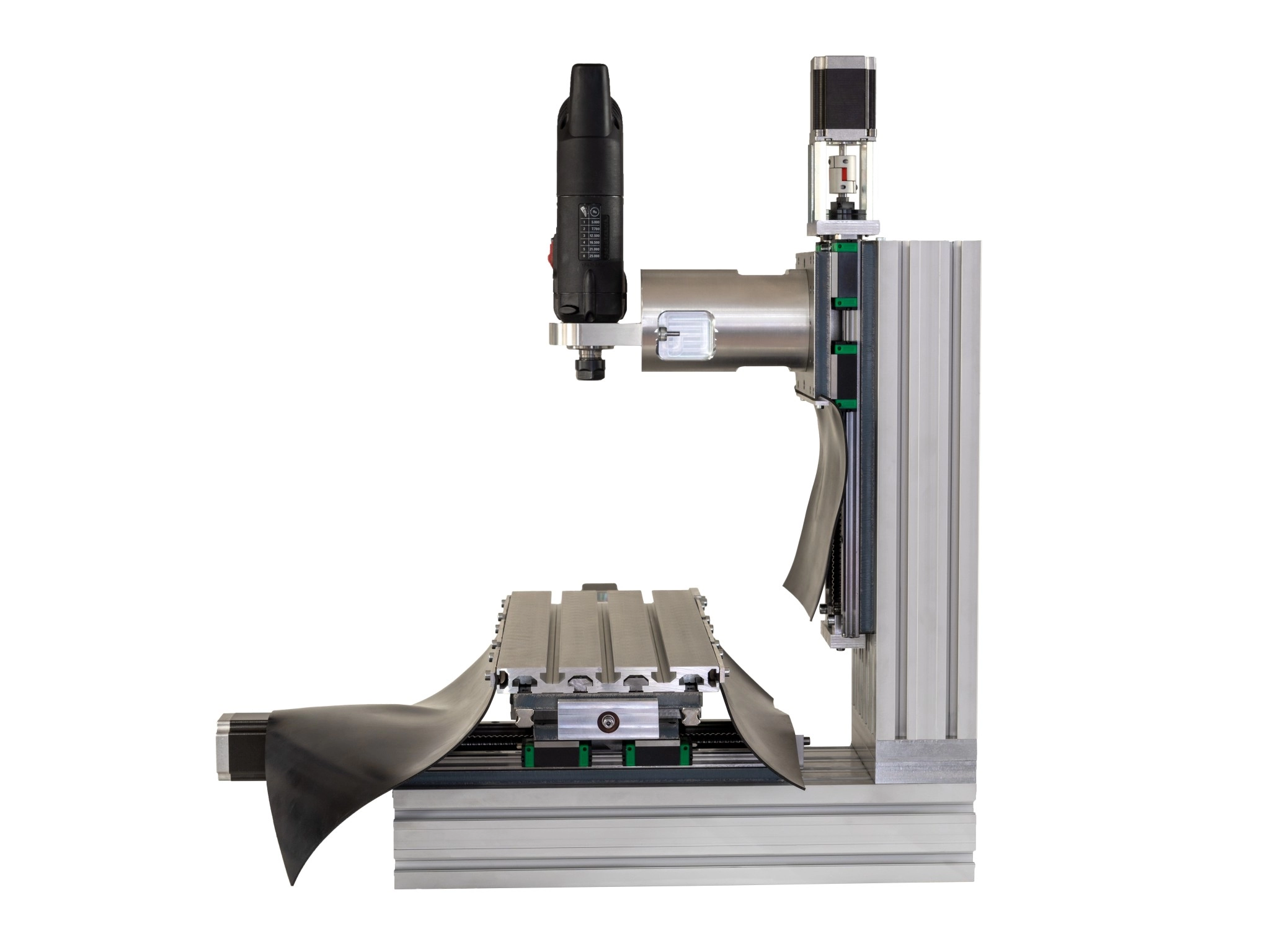

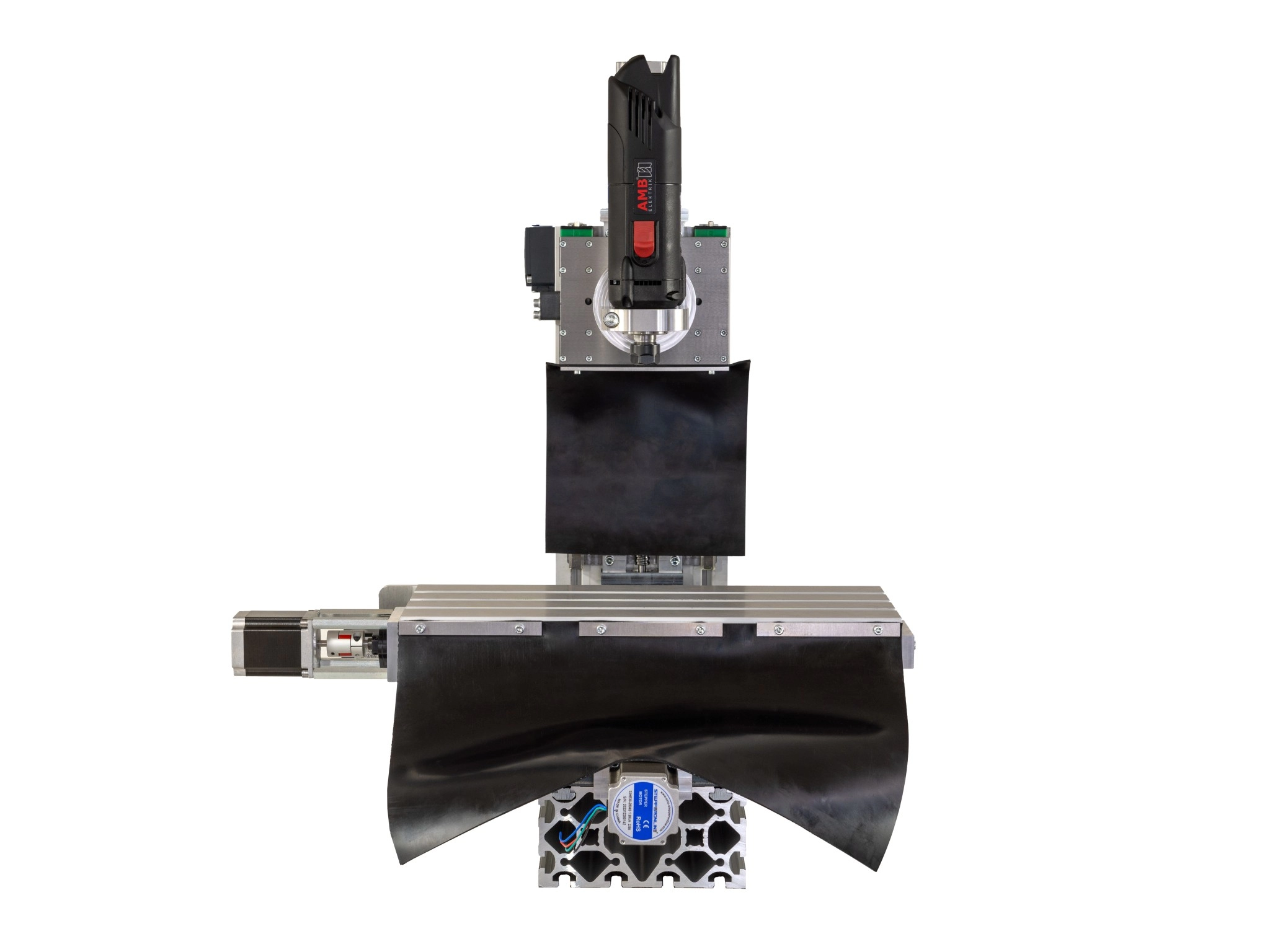

Whatever materials you need to work with, whatever CAD program you use, VM-1 can do it with precision as its entire frame is made from steel supported by heavy-duty aluminum profiles.

Every part of its structure has been processed with a precision cnc mill or surface grinder in order to achieve ±0.003mm. The thick Z-Αxis column is exactly 90° with its table, something we always find in quality machinery.

The machine has a travel of 300x200x200mm, all axes are running on hardened 15mm linear rails with a rapid feed of 5000mm/min, while there is a precision waterproof terminal switch on each axes connected to an optocoupler circuit in order to eliminate any external electromagnetic interference.

Machine Features

Traverse path (X x Y x Z)

300mm x 200mm x 200mm

Bed Size (X x Y)

450mm x 180mm

Rapid Feed (X & Y)

5000mm/min

Rapid Feed (Z)

3000mm/min

Resolution (X, Y & Z)

0.0025mm

Equipment

Spindle

AMB FME-P 1400Watt 25.000RPM with ER16 Collets

Tool Setter

For automatic tool length measurement

Drive System

Nema 23 stepper motors with 1.90Nm; 16mm ball screws for each axis

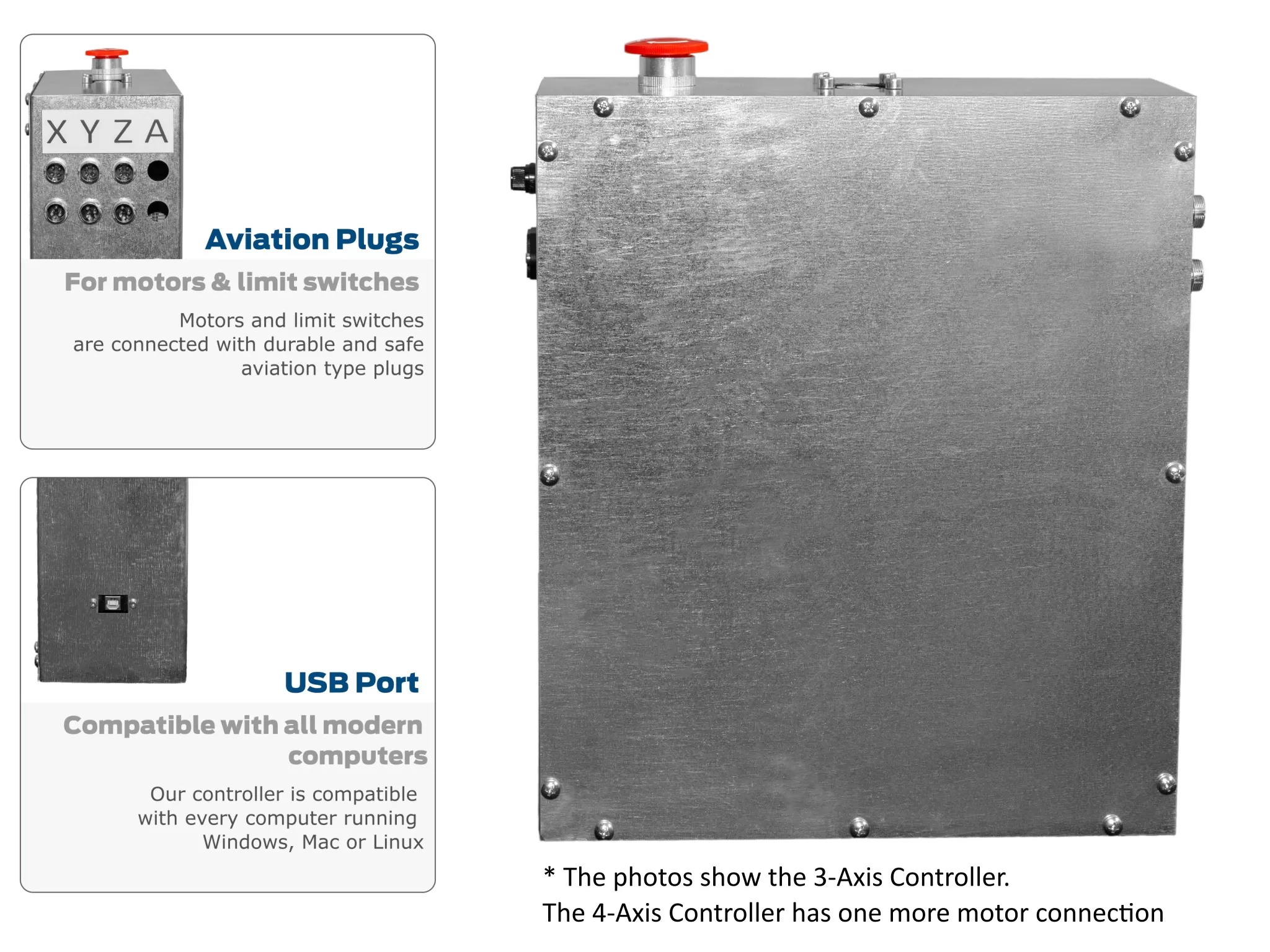

Controller

USB 4-Axis GRBL controller compatible with Windows, Mac and Linux

Limit Switches

Waterproof limit switches with ≤0.005mm repeatability

Supply

Voltage Input

230V A/C single phase

Power Input

2.2Kw

Ambient temperature

15°C – 30 °C (59°F – 86°F)

Other

Machine Dimentions (W x D x H)

612mm x 656mm x 708mm

Package Size (W x D x H)

660mm x 700mm x 766mm

Net Weight

50kg (110lbs.)


- KEY FEATURES -

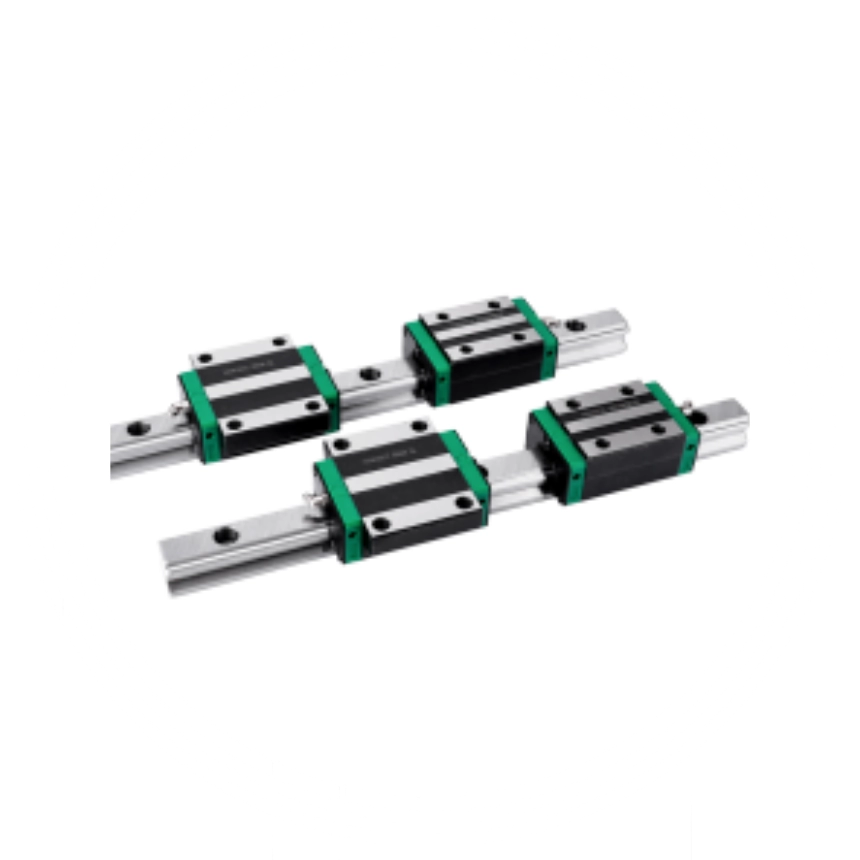

HGR15 Linear Rails

HGR15 Linear Rails

All axes are assembled with 15mm HGR linear rails.

HGR linear rails ensures rigidity and smooth milling operations even on the hardest aluminum alloys.

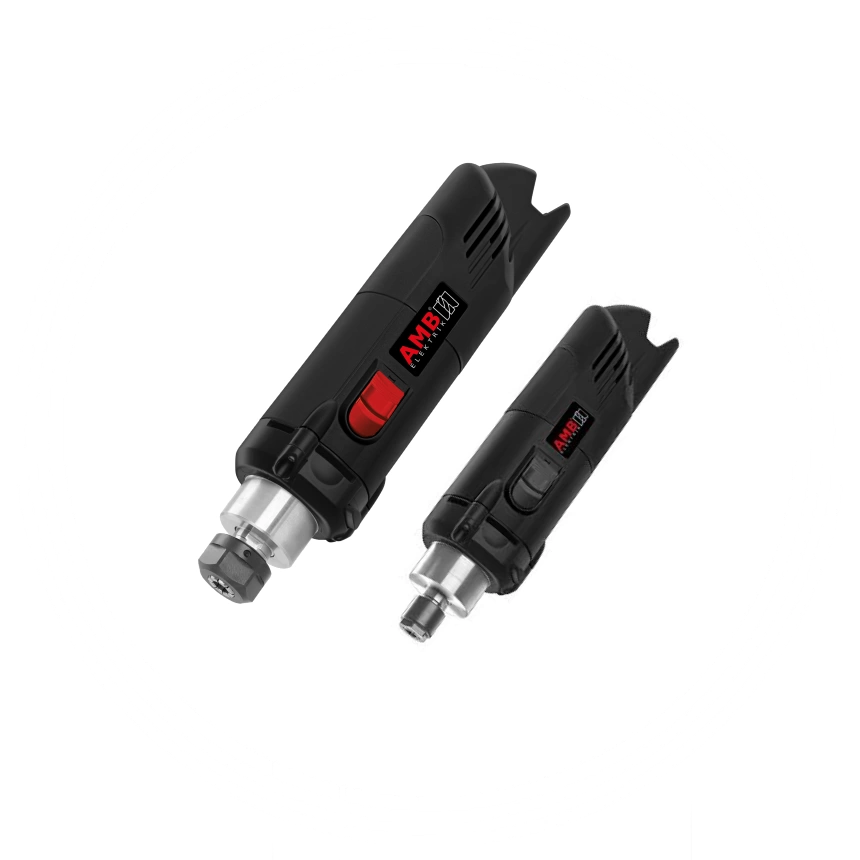

High Speed Spindle

High Speed Spindle

VM-1 comes with an AMB 1400Watt spindle.

AMB spindles are extremely precise and can achieve 25.000 RPM.

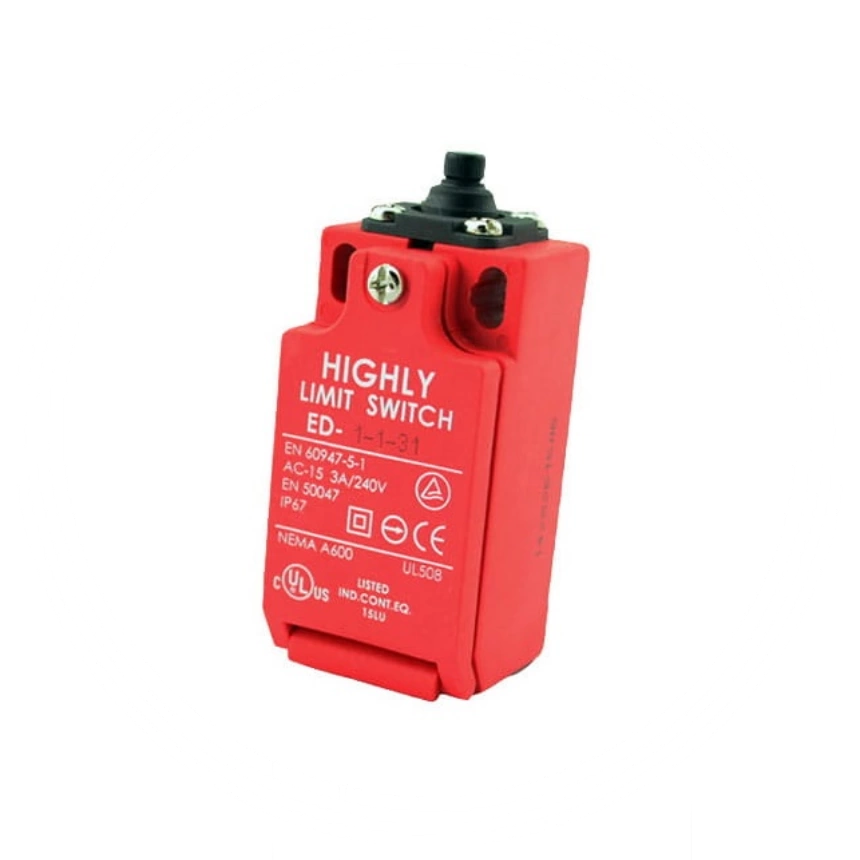

Waterproof Limit Switches

Waterproof Limit Switches

VM-1 is equipped with Precision limit switches with IP67 waterproof rating and ≤0.005mm repeatability.

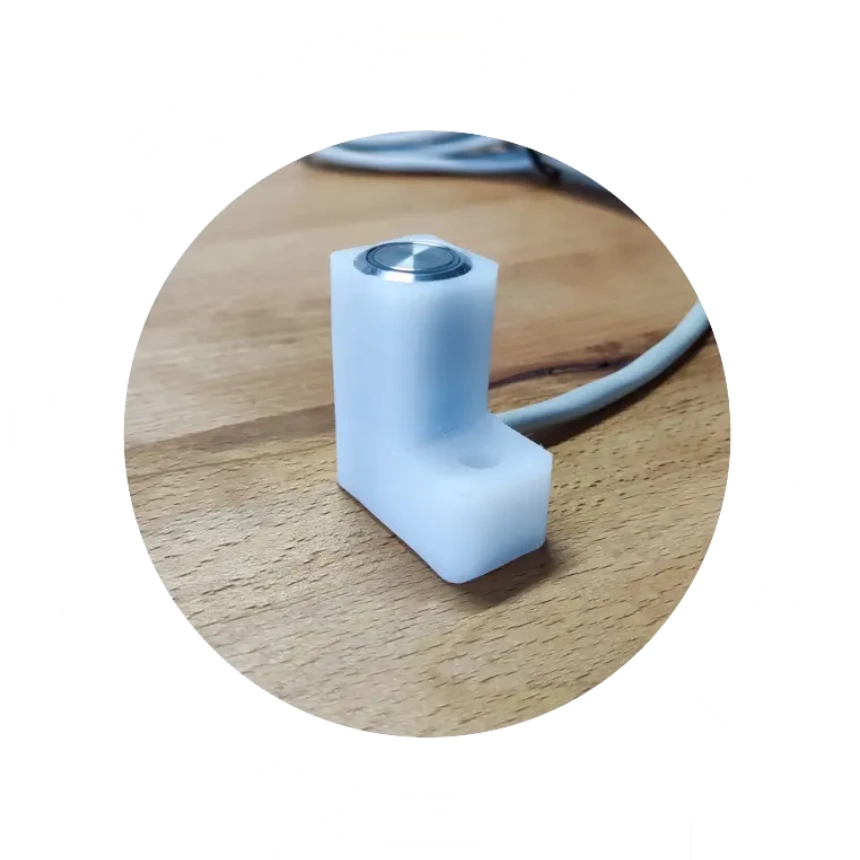

Tool Length Sensor

Tool Length Sensor

VM-1 has built-in Tool Setter D16.

The tool length measurement sensor automatically measures tool height and makes tool changing a simple and trouble free process.

Free Control Software

Free Control Software

VM-1 ships with a license for Focus PC Based CNC control system.

With Focus you will be able to control your Micro Mill using a USB port on your computer.
