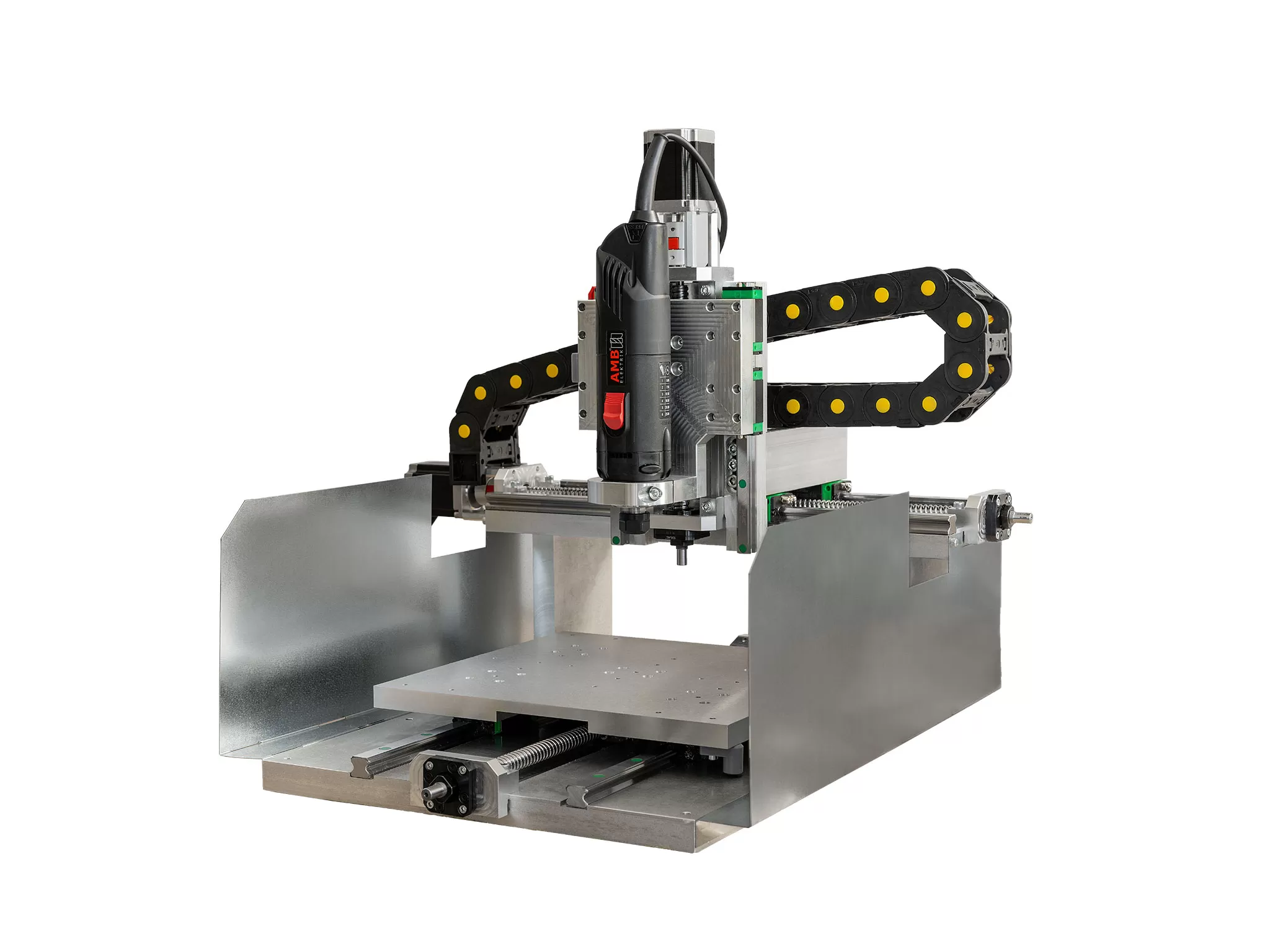

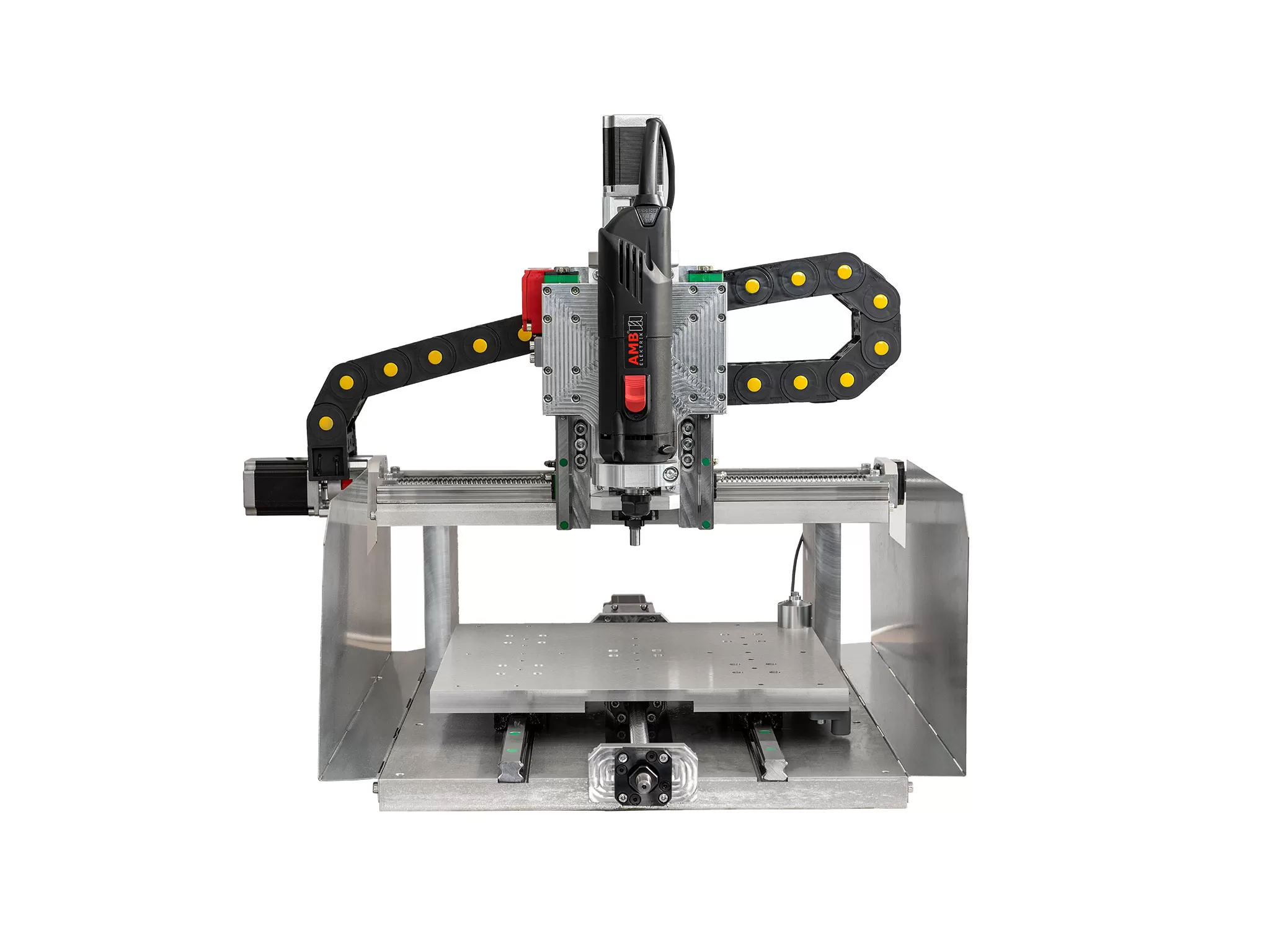

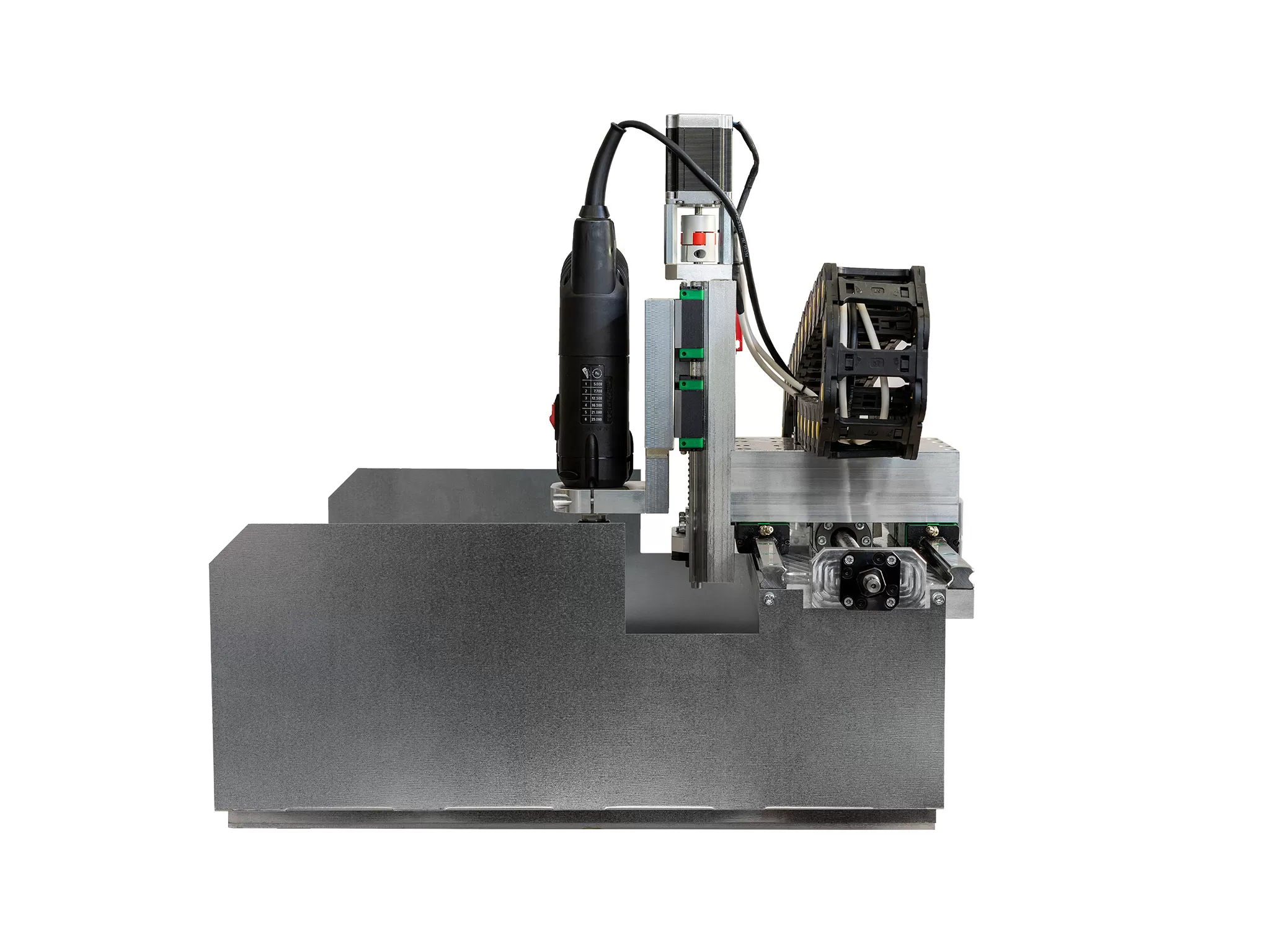

Quantum is built to give you easy access to High Speed Machining. With rapid feeds of 12 m/min and a 25000 RPM spindle, Quantum can machine parts in minutes, while other desktop CNC machine tools would needs hours.
The work area is 340x320x110mm, all axes are assembled with precision linear guides while the transmission is done by zero backlash ballscrews.
Quantums skeleton is made of solid aluminum able to hold vibrations produced by milling hard materials while the fastening points of the skeleton have been specially treated to ensure absolute verticality of the axes.
Traverse path (X x Y x Z)
340mm x 320mm x 110mm
Bed Size (X x Y)
346mm x 320mm
Rapid Feed (X & Y)
12000mm/min
Rapid Feed (Z)
5000mm/min
Resolution X, Y
0.0031mm
Resolution Z
0.0015mm
Spindle
AMB FME-P 1400Watt 25.000RPM with ER16 Collets
Tool Setter
For automatic tool length measurement
Drive System
Nema 23 stepper motors with 1.90Nm; ball screws for each axis

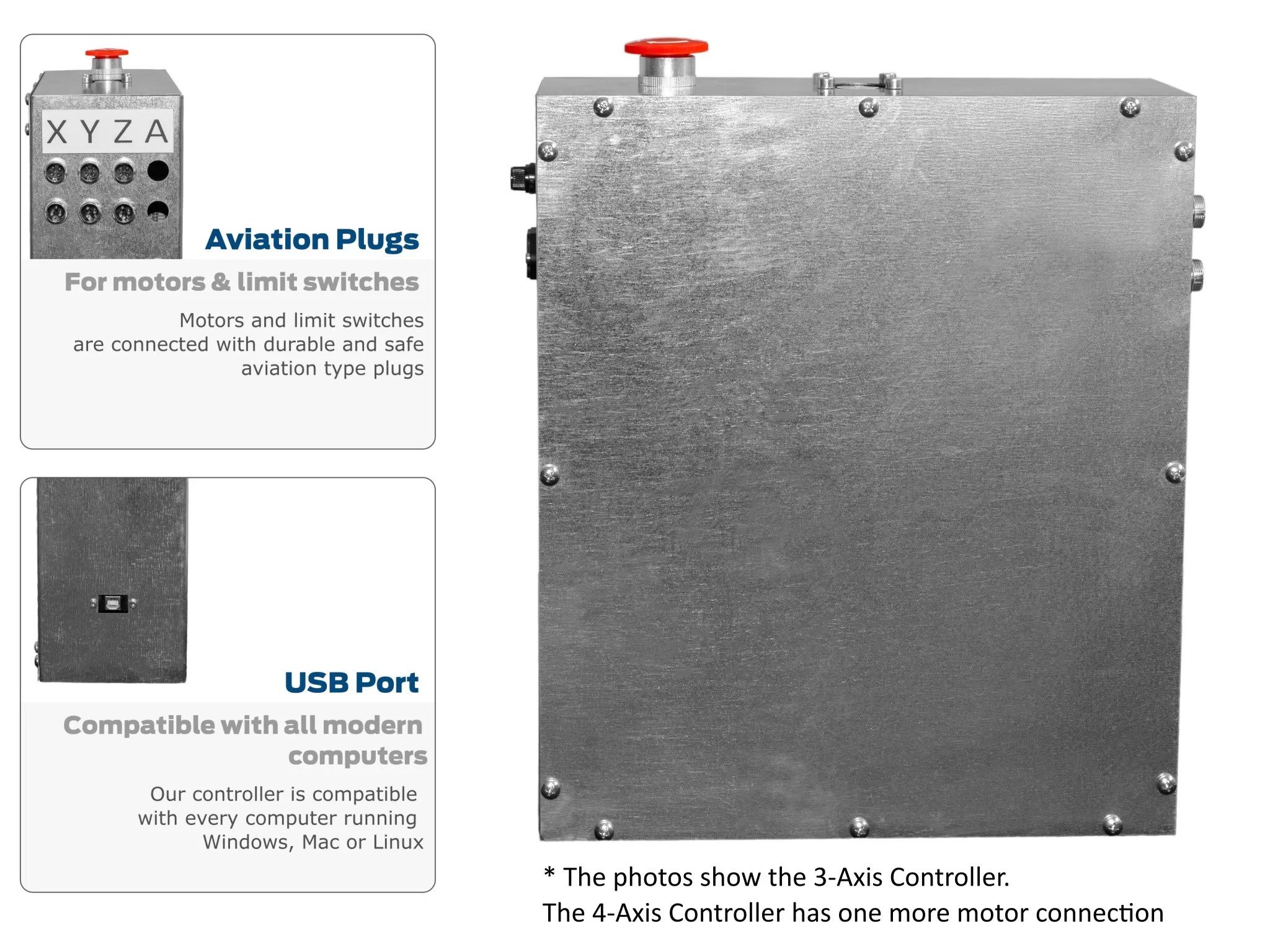

Controller
USB 4-Axis GRBL controller compatible with Windows, Mac and Linux
Limit Switches
Waterproof limit switches with ≤0.005mm repeatability
Voltage Input
230V A/C single phase
Power Input
2.2Kw
Ambient temperature
15°C – 30 °C (59°F – 86°F)
Machine Dimentions (W x D x H)
620mm x 720mm x 543mm
Package Size (W x D x H)
750mm x 770mm x 682mm
Net Weight
64kg

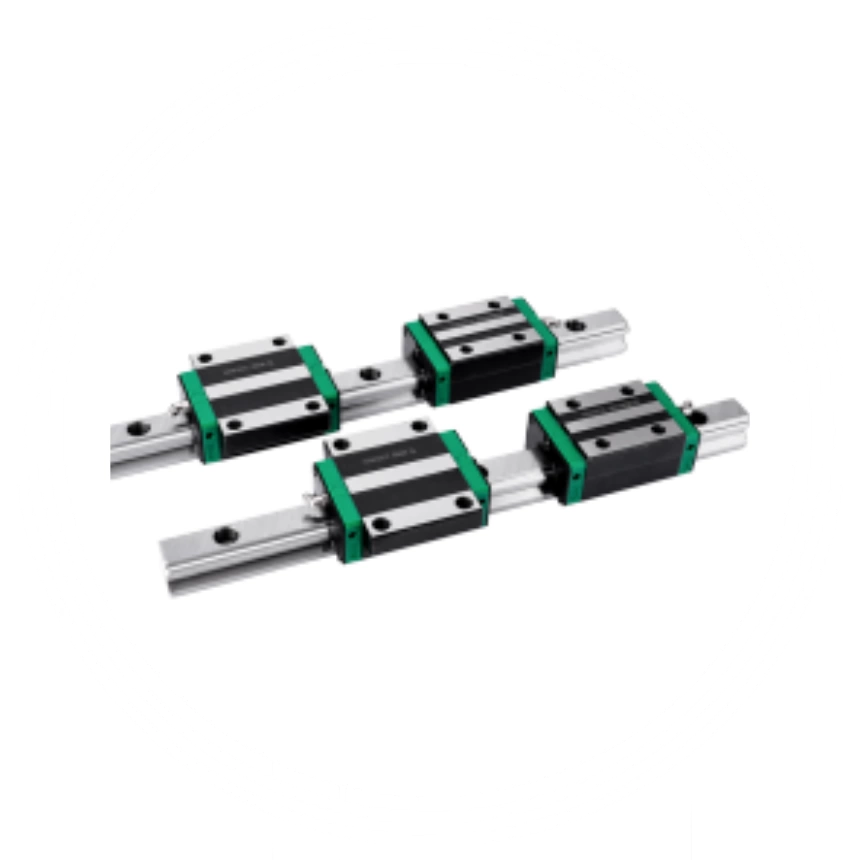

All axes are assembled with HGR precision linear rails.
HGR linear rails ensures rigidity and smooth milling operations even on the hardest aluminum alloys.

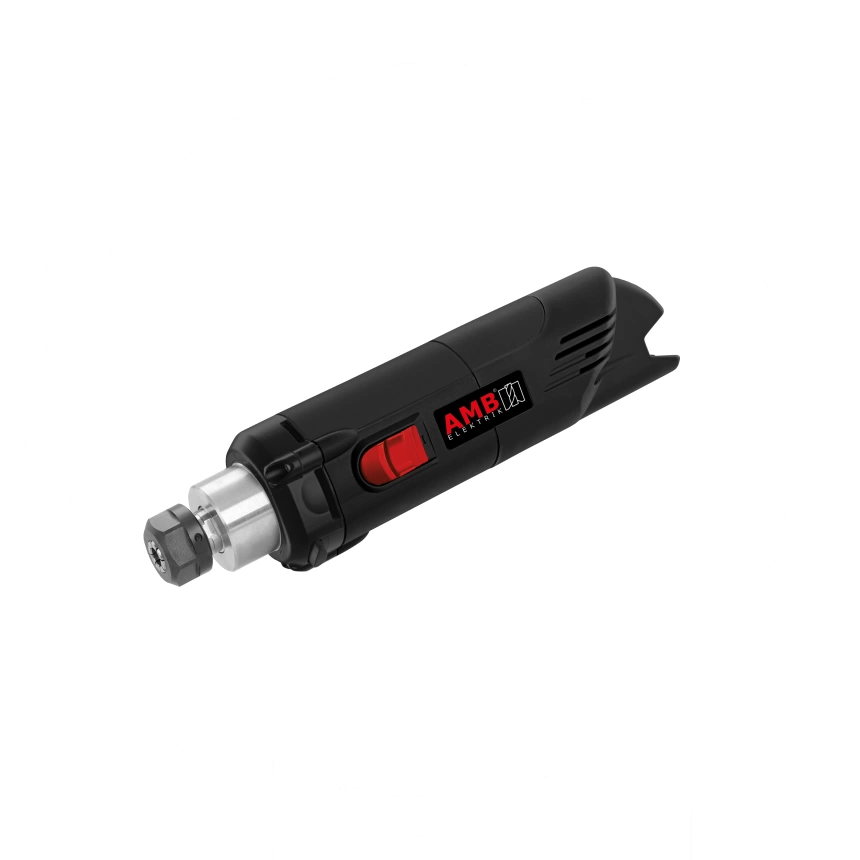

Quantum is equipped with an ER16 1400Watt AMB Spindle.
The AMB spindle comes ready with a factory test certificate of runout which guarantees the runout to be <0.05mm at a distance of 25mm from the tip of the Spindle.

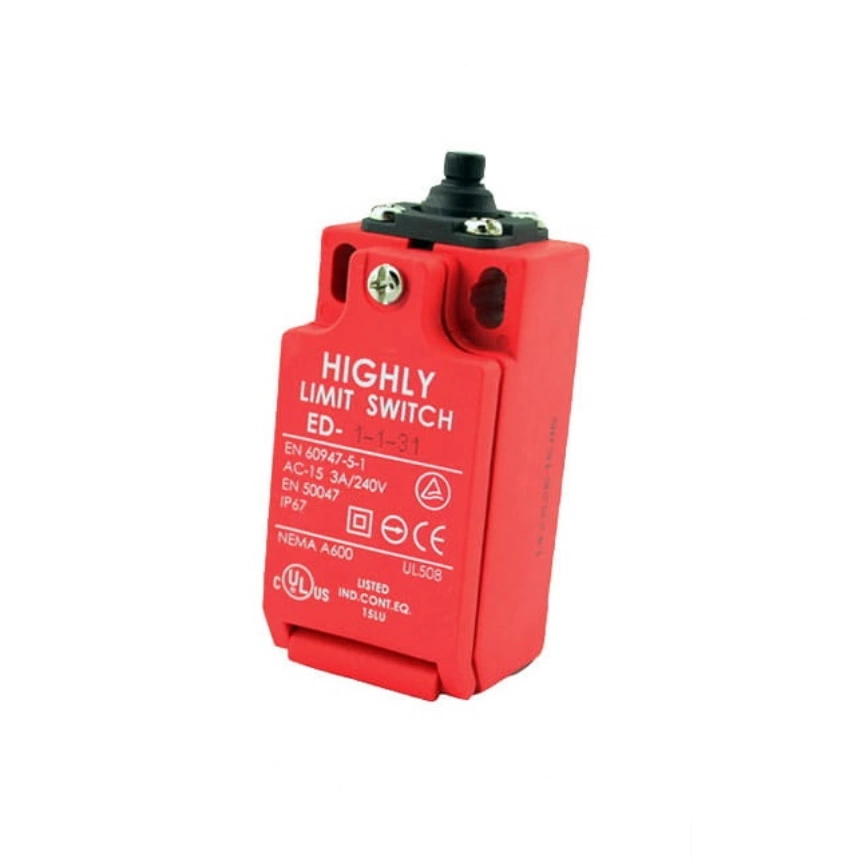

Quantum is equipped with Precision limit switches with IP67 waterproof rating and ≤0.008mm repeatability.

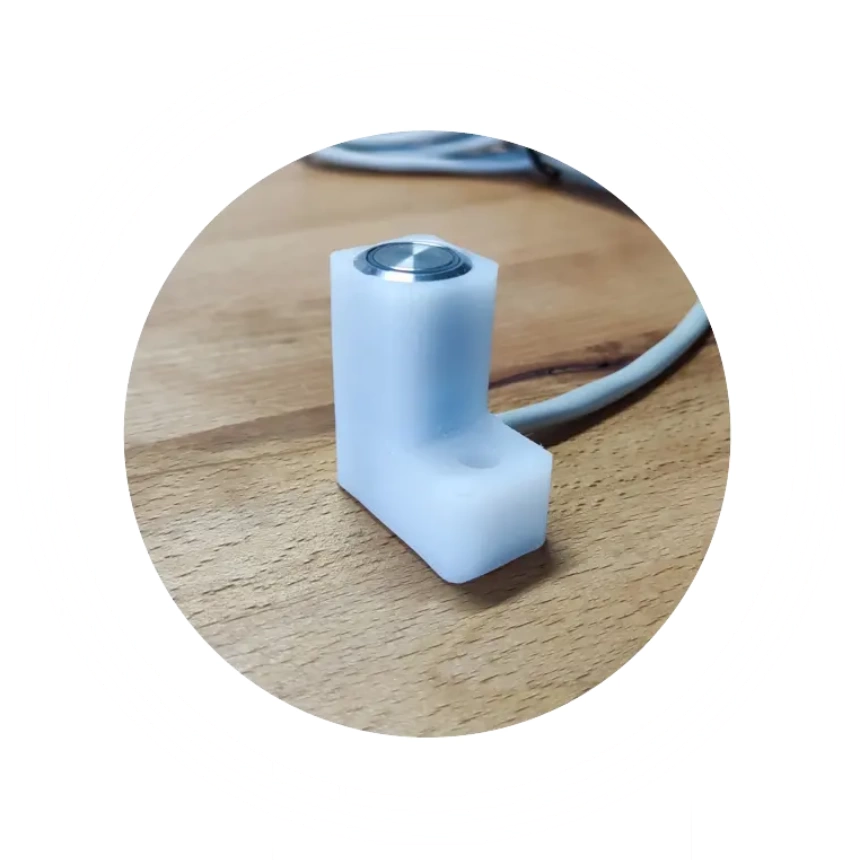

Quantum has built-in Tool Setter D16.
The tool length measurement sensor automatically measures tool height and makes tool changing a simple and trouble free process.
Quantum ships with a license for Focus PC Based CNC control system.
With Focus you will be able to control Quantum using a USB port on your computer.
